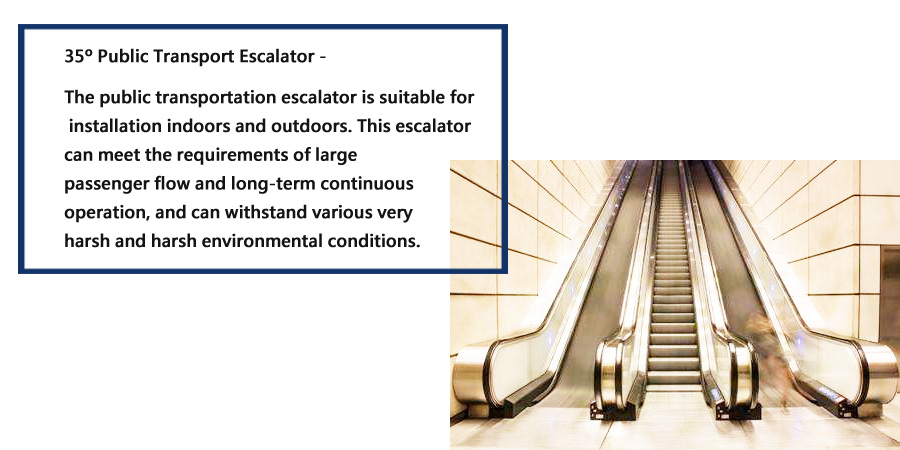

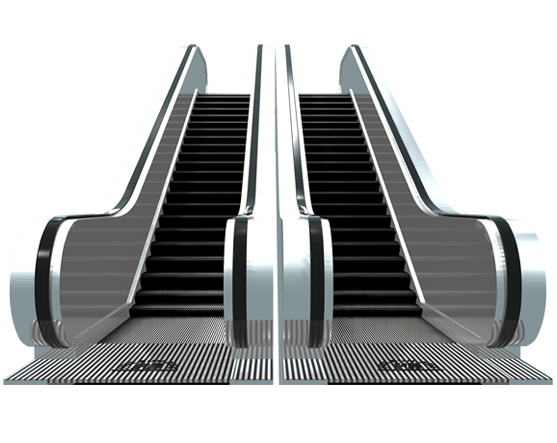

Escalator  -   35º public transport

Low vibration, low noise, smooth operation.

Upportdash
Upportdash

35º public transport    Escalator -

The power of the company comes from customers. In order to satisfy every customer, "Fuji elevator" constantly innovates and seeks changes in products, and adds color to you with rich and varied designs.

Exterior design

Balustrade: Tempered glass or Stainless Steel.

Handrail bracket: Aluminum alloy or hairline Stainless Steel.

Handrail: Sulfurized black rubber embed with steel wire (options for other color).

Exterior/interior deck: Hairline Stainless Steel.

Skirt panel: Hairline Stainless Steel or steel sheet coat with Teflon.

Step: Aluminum alloy or stainless steel.

Security sign for steps: Yellow plastic strip.

Landing board: Etched stainless steel with black pattern (Anti slip).

Operation panel: Red emergency stop button & key switch for upward and downward.

Step lighting: Green fluorescent lamp under step.

Main specification

Locale: Indoors/Semi-outdoors/outdoors.

Durability: 24 Hours per day.

Rise:1.0~6 Meters。

Inclination:30º/35º。

Step width:600/800/1000mm。

Number of horizontal step:2/3 steps。

Upside radius of curvature of escalator step:1500/2700mm。

Speed: 0.5 m/sec.

Capacity: 3600/4800/6000 person/hour(CNS: 4500/6750/9000 person/hour) .

Main power: 3 Phase- 220/380V,50/60HZ.

Lighting power: Signal phase-220V,50/60HZ.
