Rectangular steel trusses increase strength and avoid internal corrosion, and aluminum/stainless steel steps are safe, reliable and durable. "Fuji elevator" escalators are your trustworthy choice.

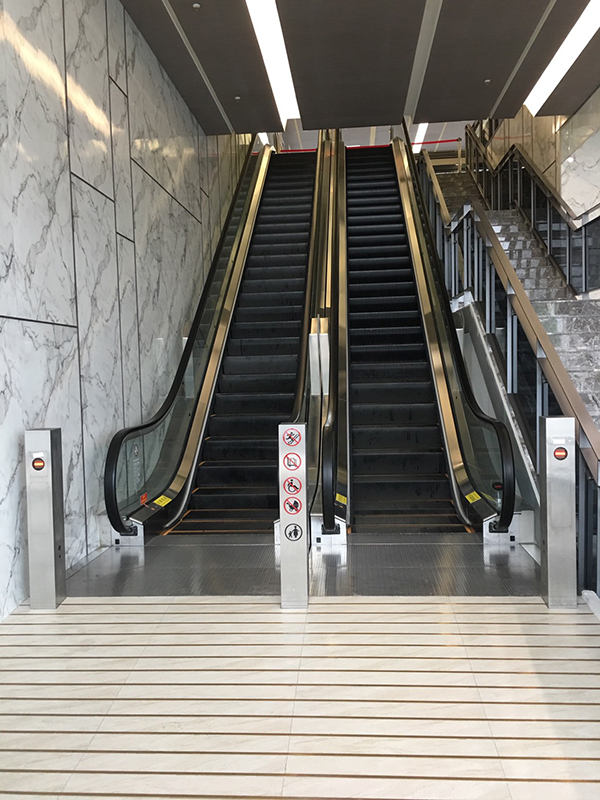

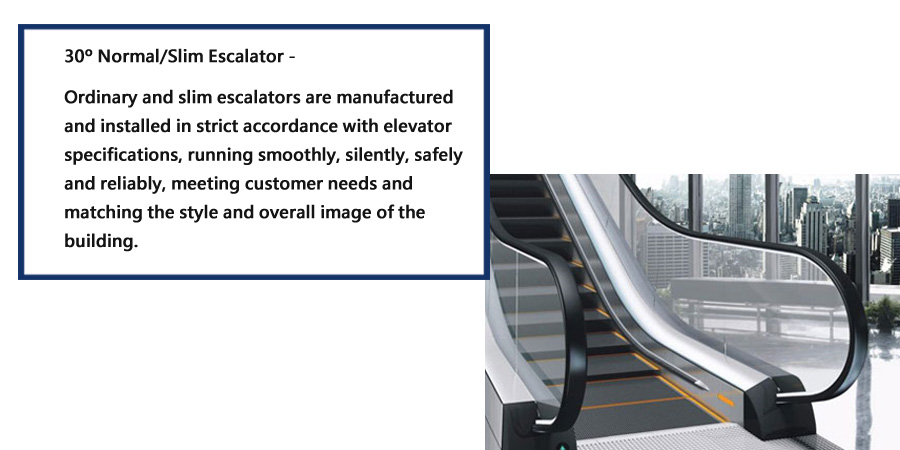

Escalator - 30º Normal/Slim
Escalator - 30º Normal/Slim

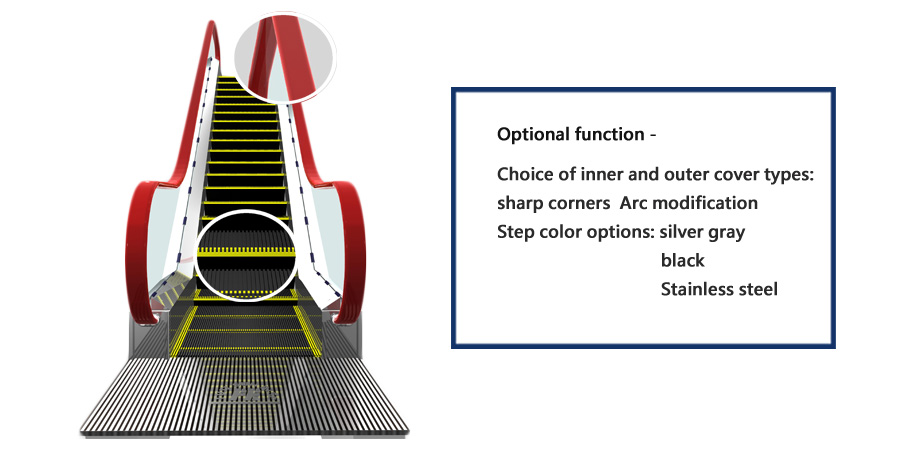

Exterior design
Balustrade: 10mm tempered glass
Handrail bracket: Aluminum alloy or hairline Stainless Steel.
Handrail: Sulfurized black rubber embed with steel wire(options for other color).
Exterior/interior deck: Hairline Stainless Steel.
Skirt panel: Hairline Stainless Steel or steel sheet coat with Teflon.
Step: Pressing stainless steel with black electrophoresis paint.
Security sign for steps: Yellow plastic strip.
Landing board: Pressing stainless steel (option: etched stainless steel with black pattern).
Operation panel: Red emergency stop button & key switch for upward and downward.
Step lighting: Green fluorescent lamp under step.
Main specification
Locale: Indoors.
Durability: 16 Hours per day.
Rise: 1.0~6.0m.
Inclination: 30º~35º.
Step width: 600/800/1000mm.
Number of horizontal step: 2 steps.
Upside radius of curvature of escalator step：1500/2700mm。
Speed: 0.5 m/sec.
Capacity: 3600/4800/6000 hour(CNS: 4500/6750/9000 person/hour) .
Main power: 3 Phase- 220/380V,50/60HZ.
Lighting power: Signal phase-220V,50/60HZ.
